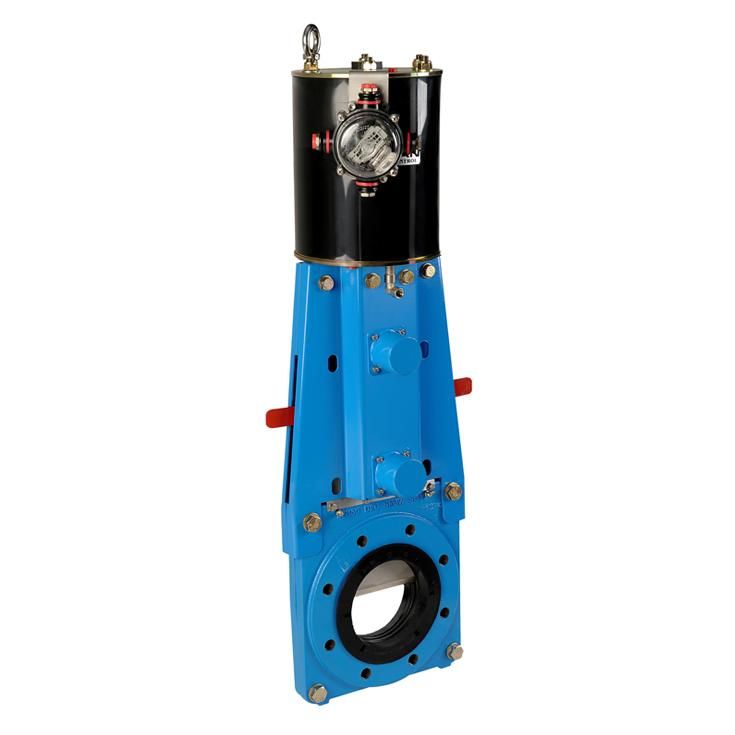

SKG Wafer Knife Gate Valves

SKG Wafer

For knife gate valves that perform in the most challenging conditions, trust in RF VALVES

SKG Advantages & Key Features

Pass-through design
Bi-directional valve with a packingless design
Full port bore formed by 2 heavy-duty elastomer sleeves with an embedded stiffener ring to maintain sleeve shape and prevent wear and tear
Yoke design prevents slurry splatter and allows for easy mounting of proximity or limit switches and other accessories.
360-degree groove along inner sleeve surface allows for axial flexibility
Top bracket design accommodates manual, pneumatic, hydraulic or electric actuation with no modifications needed

Specifications

Size Range	2" (80mm) to 24" (600mm)
Temperature	Up to 390degF
Max. Operating Pressure	Up to 150psi (10bar) (consult for higher pressures)
Flange Drilling	ASME B-16.5 Class 150, AS2129 Table D&E, PN10, PN16
Actuation	Manual, Manual Bevel Gear, Pneumatic, Electro-mechanical and Hydraulic
Sleeve Material	NR, EPDM, NBR, or FKM/FPM
Body & Yoke Material	FUSION BONDED EPOXY POWDERCOATED Ductile Iron with Fusion bonded epoxy mild steel yoke plates
Blade Material	Stainless Steel 316L , Teflon coated, or Duplex 2205
