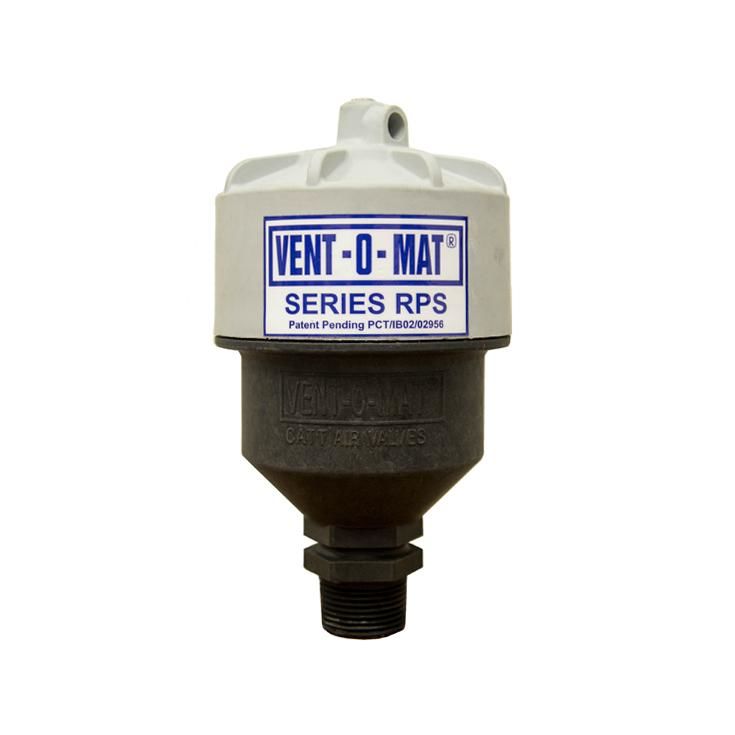

RPS Air Release Valves

The Vent-O-Mat® RPS Series valve is specially developed as a Lightweight Air Release Valve for the irrigation market.

Vent-O-Mat Advantages & Key Features

Specifications

Size Range	0.5" (15mm) to 2" (50mm)
Temperature	-40degF to 185degF
Max. Operating Pressure	Up to 232psi (16bar)
Min. Operating Pressure	7.25psi
Flange/End Connection	FNPT, MNPT
Body Material	Polypropylene Reinforced (RPS) or Fusion Bonded Epoxy Powdercoated Ductile Iron (RC)
Float Material	High Density Polyethylene (solid)
O-Rings and Nozzle Seat	EPDM
