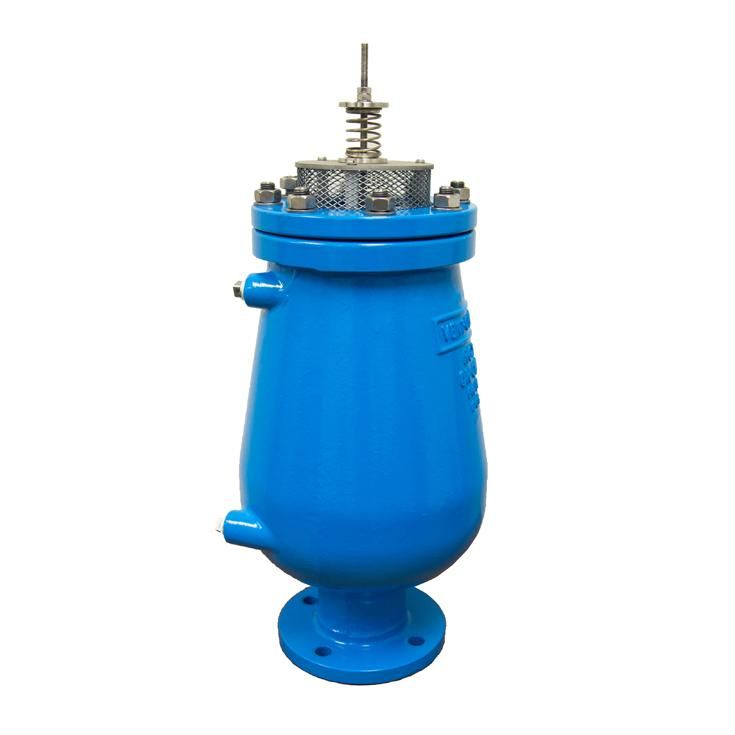

RGXII Air Release Valves

The original “Anti-Shock” & “Anti-Surge” air release and vacuum break valves for water, sewage, and effluent pipelines.

Vent-O-Mat Advantages & Key Features

High capacity air discharge during pipeline filling
High volume air intake for vacuum break purposes, both during draining of water pipelines and/or column separations
Independent third-party tested
Controlled pressurized air discharge releases air when pipelines are fully-charged
Surge relief prevents pipeline bursts during pump trip & rapid pipeline filling
More compact & shorter to accommodate existing installations and retrofits
Designed for low head sealing as well where line pressures are generally lower than normal

Specifications

Size Range	2" (50mm) to 8" (200mm)
Temperature	-40degF to 185degF
Max. Operating Pressure	Up to 145psi (10bar)
Min. Operating Pressure	2.9psi
Flange/End Connection	MNPT, Flanged ASME B-16.5
Flange Drilling	ANSI 150#
Body Material	Fusion Bonded Epoxy powder coated Ductile Iron or Stainless Steel 304L or 316L
Flange Material	Stainless Steel 304L
Top Cover	Stainless Steel 304L or 316L
Float Material	High Density Polyethylene (solid)
O-Rings and Nozzle Seat	EPDM
